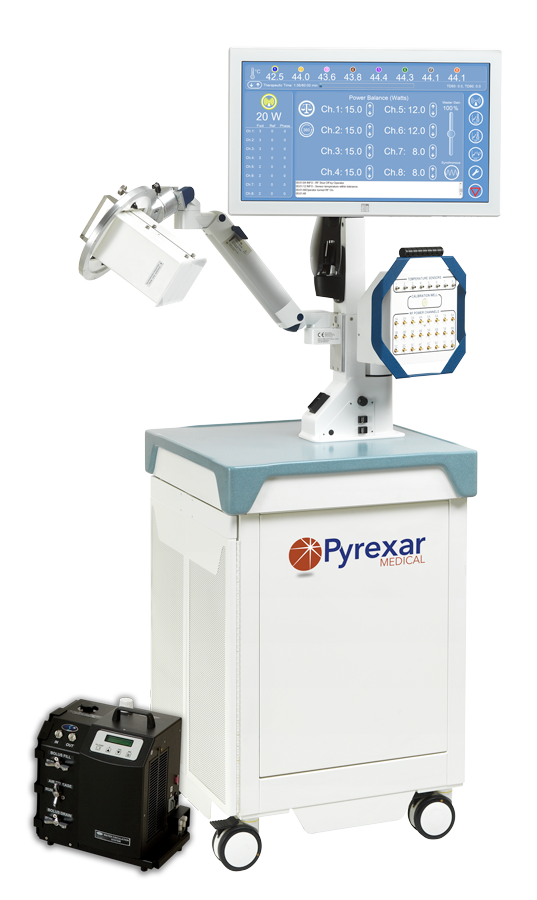

BSD-500 Superficial Hyperthermia

BSD-500 Superficial Hyperthermia is a versatile, fully self-contained treatment system in a mobile configuration or maximum treatment flexibility of superficial tumours within 1” of skin surface

915 MHz Eight-Channel Power Amplifier Multi-channel solid-state amplifier producing an available 480 Watts maximum RF power with independently adjustable phase and amplitude.

24” Medical Grade Touch Screen Monitor High-resolution monitor providing easy access to user control systems for improved patient monitoring and system control.

Interchangeable Superficial Applicators

Applicators are available in multiple configurations to treat a range of tumour sizes and locations. The base model includes the MA100 waveguide.

 5-Point Pneumatic Applicator Arm

Provides rock-steady placement of Hyperthermia applicators at any angle with a total reach of 41”.

Brachytherapy Treatment Support Interstitial hyperthermia delivers heat directly to the site of the tumor via brachytherapy catheters. The microwave power delivered to the antennas (available as an optional kit) can be adjusted in amplitude and phase to conform the heating pattern to the tumor

8-port Temperature Monitoring

Track up to 8 independent temperature probes for accurate thermal dosing. An integrated temperature well ensures easy and precise temperature calibration.

Water Circulation System

Provides constant volume water supply to the Applicator Bolus with a temperature range of 5˚C to 45˚C
